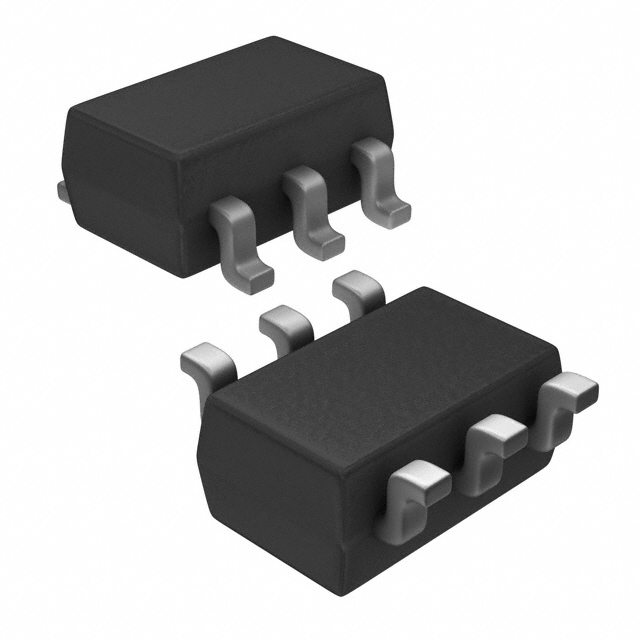

AO6409
MOSFET P-CH 20V 5.5A 6TSOP
part Number：
AO6409
Alternative Model：
AO6409A,AON7421,CPDQC5V0U-HF,AOTS21115C,MF-NSMF020-2,CR95HF-VMD5T,ST25R95-VMD5T,RT9193-33GB,SMF05CT1G
manufacturer：
Alpha and Omega Semiconductor, Inc.
category：
Discrete Semiconductor Products >
Transistors >
FETs, MOSFETs >
Single FETs, MOSFETs >
describe：
MOSFET P-CH 20V 5.5A 6TSOP
RoHS：
YES
AO6409 specifications
Mounting Type：
Surface Mount
Supplier Device Package：
6-TSOP
Technology：
MOSFET (Metal Oxide)
Operating Temperature：
-55°C ~ 150°C (TJ)
FET Type：
P-Channel
Drain to Source Voltage (Vdss)：
20 V
Vgs (Max)：
±8V
Vgs(th) (Max) @ Id：
1V @ 250µA
Drive Voltage (Max Rds On, Min Rds On)：
1.8V, 4.5V
Package / Case：
SC-74, SOT-457
Power Dissipation (Max)：
2.1W (Ta)
Current - Continuous Drain (Id) @ 25°C：
5.5A (Ta)
Gate Charge (Qg) (Max) @ Vgs：
17.2 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds：
1450 pF @ 10 V
Rds On (Max) @ Id, Vgs：
45mOhm @ 5A, 4.5V
