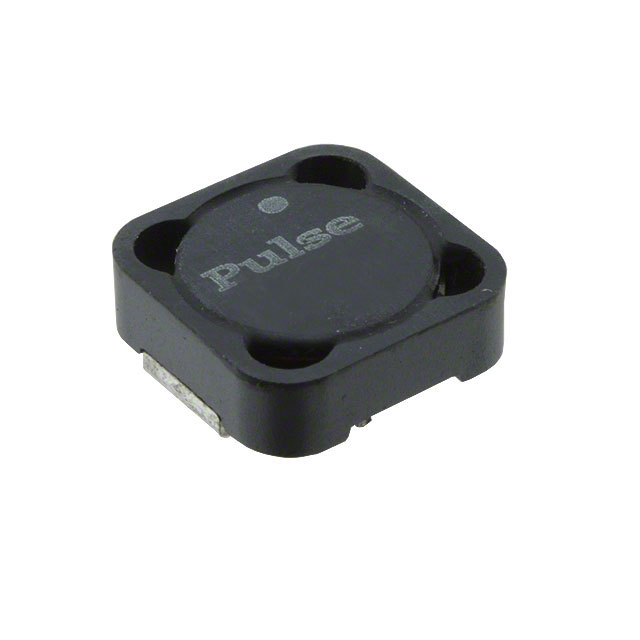

P1168.154NLT
FIXED IND 150UH 1A 456 MOHM SMD
part Number：
P1168.154NLT
Alternative Model：
P1168NLKIT
manufacturer：
Pulse Larsen Antenna
category：
Inductors, Coils, Chokes >
Fixed Inductors >
describe：
FIXED IND 150UH 1A 456 MOHM SMD
RoHS：
YES
P1168.154NLT specifications
Mounting Type：
Surface Mount
Height - Seated (Max)：
0.177" (4.50mm)
Operating Temperature：
-40°C ~ 130°C
Current Rating (Amps)：
1 A
Shielding：
Shielded
Tolerance：
±20%
Type：
Wirewound
Inductance Frequency - Test：
100 kHz
Package / Case：
Nonstandard
Inductance：
150 µH
Current - Saturation (Isat)：
1A
Size / Dimension：
0.482" L x 0.482" W (12.24mm x 12.24mm)
Frequency - Self Resonant：
4.9MHz
DC Resistance (DCR)：
456mOhm Max
