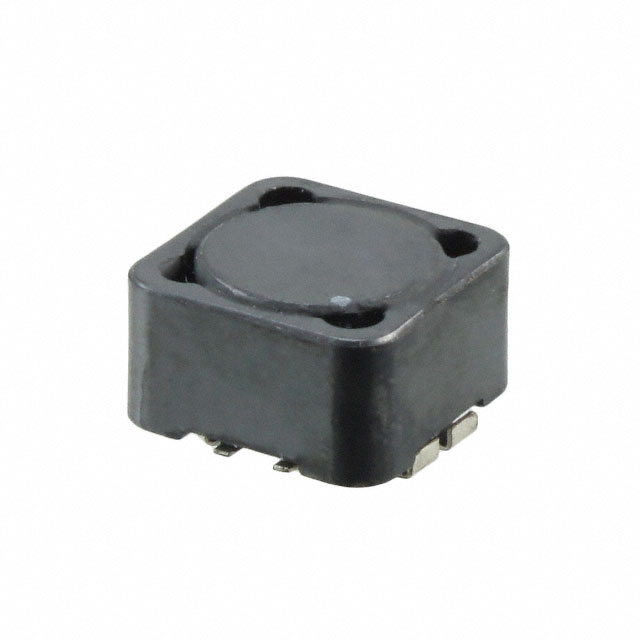

PF0553.473NLT
INDUCT ARRAY 2 COIL 47UH SMD
part Number：
PF0553.473NLT
Alternative Model：
PF0553.473NL
manufacturer：
Pulse Larsen Antenna
category：
Inductors, Coils, Chokes >
Arrays, Signal Transformers >
describe：
INDUCT ARRAY 2 COIL 47UH SMD
RoHS：
YES
PF0553.473NLT specifications
Mounting Type：
Surface Mount
Size / Dimension：
0.492" L x 0.492" W (12.50mm x 12.50mm)
Operating Temperature：
-40°C ~ 125°C
Shielding：
Shielded
Tolerance：
±20%
Package / Case：
Nonstandard
Height：
0.315" (8.00mm)
Number of Coils：
2
DC Resistance (DCR) - Parallel：
72mOhm Max
Current Rating - Series：
1.5 A
Inductance - Connected In Parallel：
47 µH
Inductance - Connected In Series：
190 µH
Current Rating - Parallel：
2.9 A
Current Saturation - Parallel：
5.3 A
Current Saturation - Series：
2.6 A
DC Resistance (DCR) - Series：
290mOhm Max
