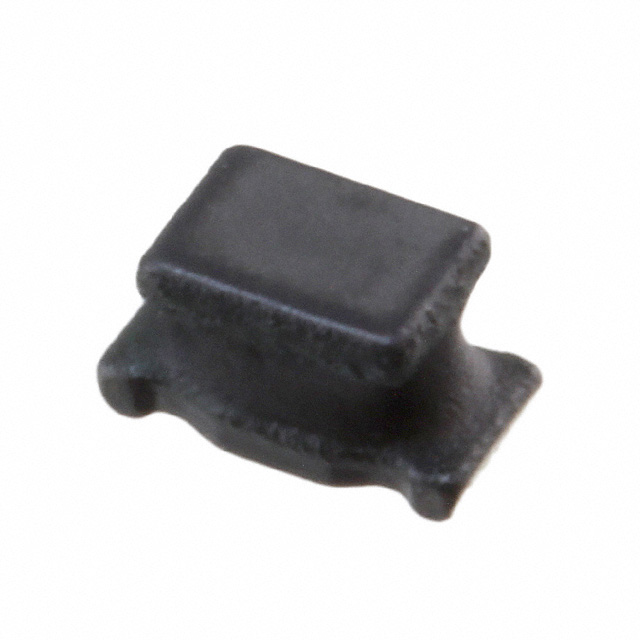

LQH31CN2R2M03L
FIXED IND 2.2UH 430MA 533MOHM SM
part Number：
LQH31CN2R2M03L
Alternative Model：
manufacturer：
TOKO / Murata
category：
Inductors, Coils, Chokes >
Fixed Inductors >
describe：
FIXED IND 2.2UH 430MA 533MOHM SM
RoHS：
YES
LQH31CN2R2M03L specifications
Operating Temperature：
-40°C ~ 85°C
Mounting Type：
Surface Mount
Height - Seated (Max)：
0.079" (2.00mm)
Shielding：
Unshielded
Tolerance：
±20%
Type：
Wirewound
Inductance：
2.2 µH
Inductance Frequency - Test：
1 MHz
Package / Case：
1206 (3216 Metric)
Size / Dimension：
0.126" L x 0.063" W (3.20mm x 1.60mm)
Frequency - Self Resonant：
50MHz
Current Rating (Amps)：
430 mA
Supplier Device Package：
1206
DC Resistance (DCR)：
533mOhm Max
