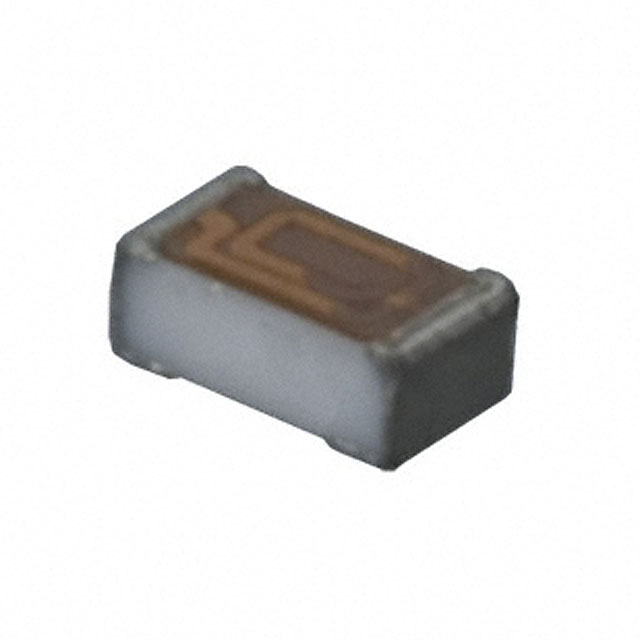

LQP15MN2N4W02D
FIXED IND 2.4NH 220MA 300MOHM SM
part Number：
LQP15MN2N4W02D
Alternative Model：
manufacturer：
TOKO / Murata
category：
Inductors, Coils, Chokes >
Fixed Inductors >
describe：
FIXED IND 2.4NH 220MA 300MOHM SM
RoHS：
YES
LQP15MN2N4W02D specifications
Operating Temperature：
-40°C ~ 85°C
Mounting Type：
Surface Mount
Shielding：
Unshielded
Current Rating (Amps)：
220 mA
Package / Case：
0402 (1005 Metric)
Size / Dimension：
0.039" L x 0.020" W (1.00mm x 0.50mm)
Frequency - Self Resonant：
6GHz
Inductance Frequency - Test：
500 MHz
Supplier Device Package：
0402 (1005 Metric)
DC Resistance (DCR)：
300mOhm Max
Inductance：
2.4 nH
Height - Seated (Max)：
0.018" (0.45mm)
Type：
Thick Film
Q @ Freq：
13 @ 500MHz
Tolerance：
±0.05nH
