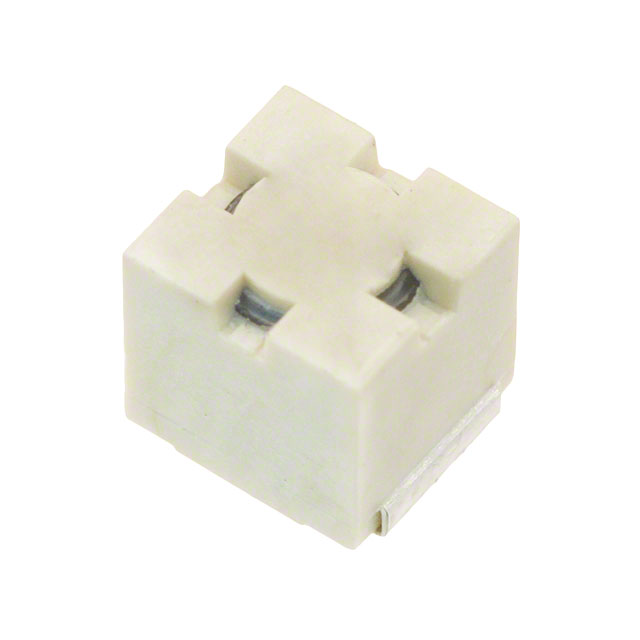

B82442A1154K000
FIXED IND 150UH 210MA 1.76OHM SM
part Number：
B82442A1154K000
manufacturer：
TDK EPCOS
category：
Inductors, Coils, Chokes >
Fixed Inductors >
describe：
FIXED IND 150UH 210MA 1.76OHM SM
RoHS：
YES
B82442A1154K000 specifications
Mounting Type：
Surface Mount
Height - Seated (Max)：
0.209" (5.30mm)
Shielding：
Unshielded
Operating Temperature：
-55°C ~ 125°C
Type：
Drum Core, Wirewound
Material - Core：
Ferrite
Tolerance：
±10%
Ratings：
AEC-Q200
Package / Case：
2-SMD, J-Lead
Size / Dimension：
0.220" L x 0.197" W (5.60mm x 5.00mm)
Inductance Frequency - Test：
796 kHz
Inductance：
150 µH
Current Rating (Amps)：
210 mA
Q @ Freq：
20 @ 796kHz
Supplier Device Package：
2220 (5650 Metric)
DC Resistance (DCR)：
1.76Ohm Max
Frequency - Self Resonant：
4.8MHz
