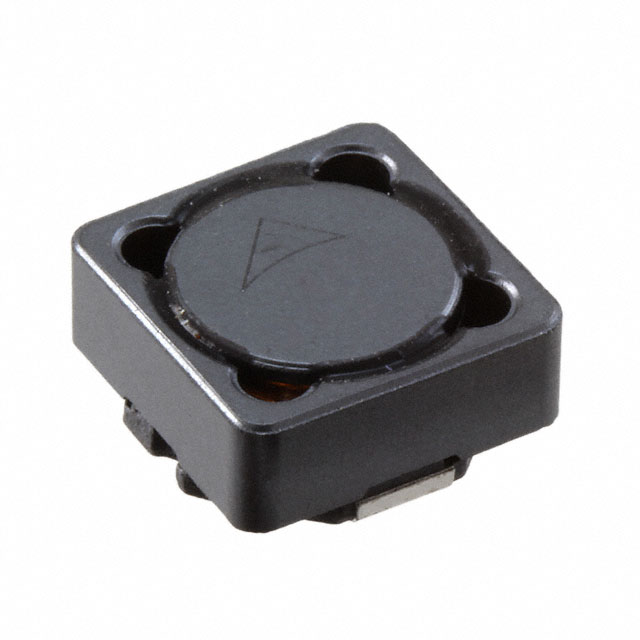

B82464P4334M000
FIXED IND 330UH 590MA 650MOHM SM
part Number：
B82464P4334M000
manufacturer：
TDK EPCOS
category：
Inductors, Coils, Chokes >
Fixed Inductors >
describe：
FIXED IND 330UH 590MA 650MOHM SM
RoHS：
YES
B82464P4334M000 specifications
Mounting Type：
Surface Mount
Height - Seated (Max)：
0.189" (4.80mm)
Shielding：
Shielded
Operating Temperature：
-55°C ~ 150°C
Type：
Drum Core, Wirewound
Material - Core：
Ferrite
Tolerance：
±20%
Ratings：
AEC-Q200
Inductance Frequency - Test：
100 kHz
Package / Case：
Nonstandard
Inductance：
330 µH
Current Rating (Amps)：
590 mA
DC Resistance (DCR)：
650mOhm Max
Size / Dimension：
0.409" L x 0.409" W (10.40mm x 10.40mm)
Current - Saturation (Isat)：
650mA
