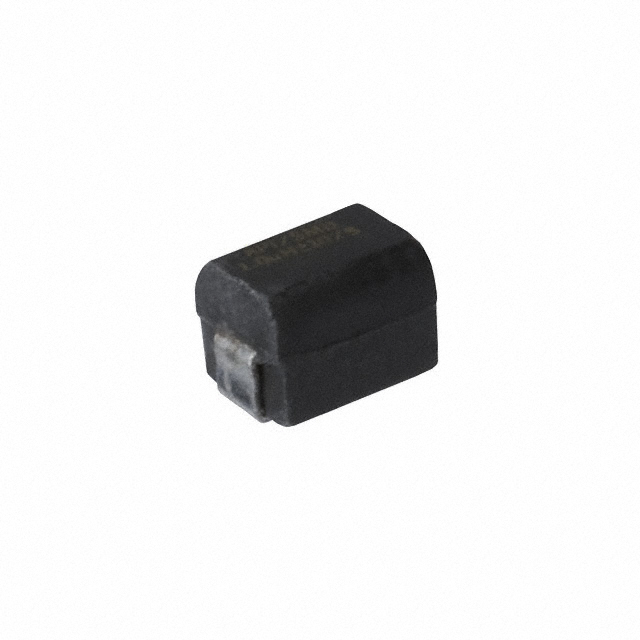

1812R-102G
FIXED IND 1UH 634MA 500 MOHM SMD
part Number：
1812R-102G
Alternative Model：
manufacturer：
API Delevan
category：
Inductors, Coils, Chokes >
Fixed Inductors >
describe：
FIXED IND 1UH 634MA 500 MOHM SMD
RoHS：
YES
1812R-102G specifications
Mounting Type：
Surface Mount
Size / Dimension：
0.126" L x 0.126" W (3.20mm x 3.20mm)
Shielding：
Unshielded
Operating Temperature：
-55°C ~ 125°C
Material - Core：
Ferrite
Tolerance：
±2%
Package / Case：
2-SMD
Height - Seated (Max)：
0.190" (4.83mm)
Inductance Frequency - Test：
7.9 MHz
DC Resistance (DCR)：
500mOhm Max
Q @ Freq：
50 @ 7.9MHz
Inductance：
1 µH
Frequency - Self Resonant：
100MHz
Current Rating (Amps)：
634 mA
