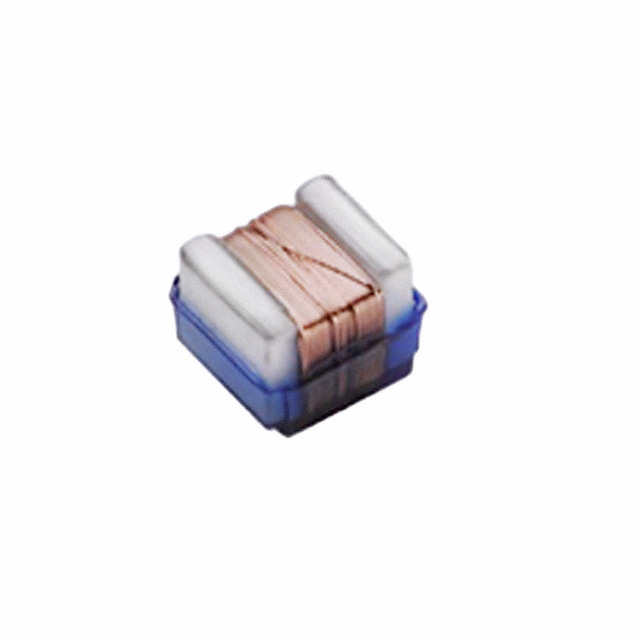

AISC-1206-R39J-T
FIXED IND 390NH 530MA 800MOHM SM
part Number：
AISC-1206-R39J-T
Alternative Model：
manufacturer：
Abracon
category：
Inductors, Coils, Chokes >
Fixed Inductors >
describe：
FIXED IND 390NH 530MA 800MOHM SM
RoHS：
YES
AISC-1206-R39J-T specifications
Mounting Type：
Surface Mount
Operating Temperature：
-40°C ~ 125°C
Shielding：
Unshielded
Type：
Drum Core, Wirewound
Material - Core：
Ceramic
Tolerance：
±5%
DC Resistance (DCR)：
800mOhm Max
Package / Case：
Nonstandard
Height - Seated (Max)：
0.060" (1.52mm)
Inductance：
390 nH
Inductance Frequency - Test：
50 MHz
Current Rating (Amps)：
530 mA
Size / Dimension：
0.140" L x 0.085" W (3.56mm x 2.16mm)
Frequency - Self Resonant：
600MHz
Q @ Freq：
45 @ 150MHz
