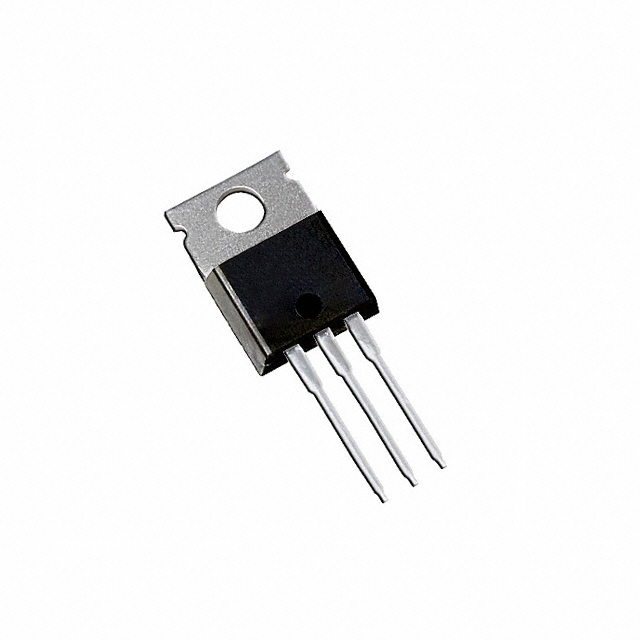

IRL3713PBF
MOSFET N-CH 30V 260A TO220AB
part Number：
IRL3713PBF
Alternative Model：
SP900S-0.009-AC-58,IRLB8743PBF,530613B00000G,530614B00000G
manufacturer：
IR (Infineon Technologies)
category：
Discrete Semiconductor Products >
Transistors >
FETs, MOSFETs >
Single FETs, MOSFETs >
describe：
MOSFET N-CH 30V 260A TO220AB
RoHS：
YES
IRL3713PBF specifications
Mounting Type：
Through Hole
FET Type：
N-Channel
Technology：
MOSFET (Metal Oxide)
Drive Voltage (Max Rds On, Min Rds On)：
4.5V, 10V
Vgs (Max)：
±20V
Vgs(th) (Max) @ Id：
2.5V @ 250µA
Supplier Device Package：
TO-220AB
Package / Case：
TO-220-3
Operating Temperature：
-55°C ~ 175°C (TJ)
Drain to Source Voltage (Vdss)：
30 V
Power Dissipation (Max)：
330W (Tc)
Current - Continuous Drain (Id) @ 25°C：
260A (Tc)
Rds On (Max) @ Id, Vgs：
3mOhm @ 38A, 10V
Gate Charge (Qg) (Max) @ Vgs：
110 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds：
5890 pF @ 15 V
