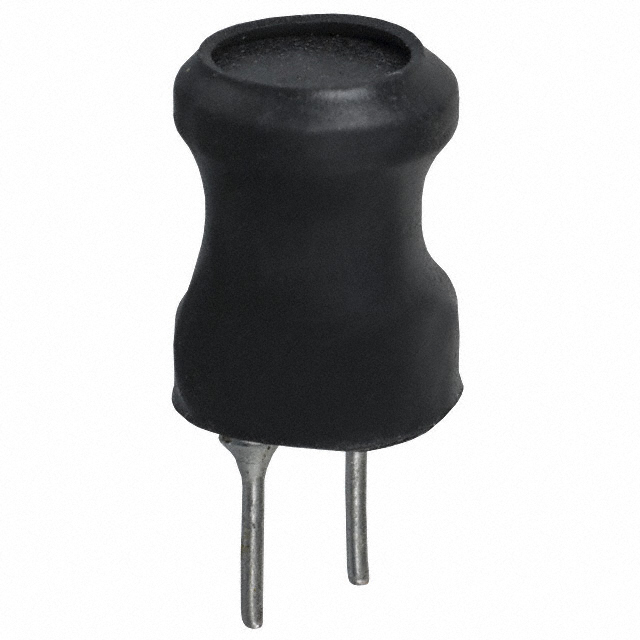

RL622-332K-RC
FIXED IND 3.3MH 80MA 9 OHM TH
part Number：
RL622-332K-RC
Alternative Model：
manufacturer：
J.W. Miller / Bourns
category：
Inductors, Coils, Chokes >
Fixed Inductors >
describe：
FIXED IND 3.3MH 80MA 9 OHM TH
RoHS：
YES
RL622-332K-RC specifications
Mounting Type：
Through Hole
Height - Seated (Max)：
0.433" (11.00mm)
Operating Temperature：
-55°C ~ 105°C
Shielding：
Unshielded
Type：
Drum Core, Wirewound
Material - Core：
Ferrite
Tolerance：
±10%
Package / Case：
Radial, Vertical Cylinder
Inductance Frequency - Test：
252 kHz
Inductance：
3.3 mH
DC Resistance (DCR)：
9Ohm Max
Current Rating (Amps)：
80 mA
Frequency - Self Resonant：
700kHz
Size / Dimension：
0.335" Dia (8.50mm)
Q @ Freq：
20 @ 252kHz
